CD 352
CD 352
New product
Manufacturer: "Clark-Drain"
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
- Send to a friend
More info

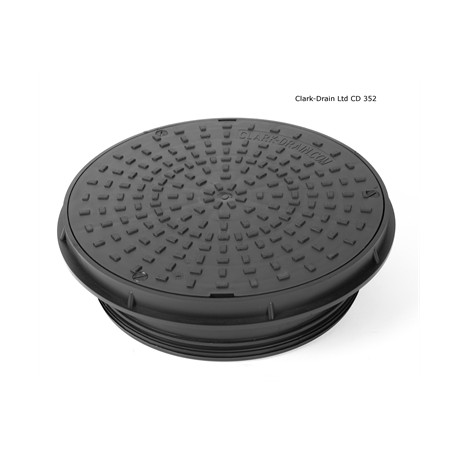

303 DIAMETER CLEAR OPENING CIRCULAR COVER AND FRAME
| Application: | Underground Drainage |
| Loading: | 15kN |
| Product Features | |
| Cover & Frame | 303 diameter clear opening. Made from corrosion resistant polypropylene. Slip-resistant surface tread pattern. 80mm overall depth includes locating ring. Depth of frame edge only is 30mm. |
| Edging | Circular design enables gravel/grass to edge neatly up to the frame |
| Material | Black polypropylene |
| Locking | Dual locking. Screw fixing of cover to frame and frame to chamber. |
| Adjustable Level | Inclination of frame can be adjusted to suit a slope of up to 15 degrees |
| Suitable for:- | Load rating capacity of 15kN is suitable for pedestrian areas. Fits Clark-Drain PPIC. |
| External Dimensions: | 388 (W) x 30 (H) |
| Weight (kgs): | 1.75 |
| Clear Opening: | 303 |
